The Jeep Gladiator blends off-road and pickup styles, and its novel combination and versatile transportation make it a favorite. To make your Gladiator even more unique, you can equip it with our custom-made LED headlight bulb H13. Its super bright output and long service life will surprise you and give you a modern look.
*This kit upgrade the Jeep Gladiator 2020 with Halogen Capsule Headlamps.
To Buy H13 LED Lights in Different Power and Lumens and with different plug type, please click here.
Why we develop Custom-Design H13 LED Bulbs?
More Suitable For Your Model
Compared with the common H13 led lights on the market, this custom kit is more suitable for your car model and fit for your Jeep Gladiator lamp housing, plug and play without any modification. Built-in CANBUS and smart driver to help you solve decoding problems without flicker and errors.
High intensity lumen output, Clear Visibility
The LED headlight bulbs use CSP chips, and can provide 100W of high-intensity lighting with 20,000 lumens per pair. The brightness is 6 times that of ordinary halogen lamps, which greatly improves the visibility of your night travel.

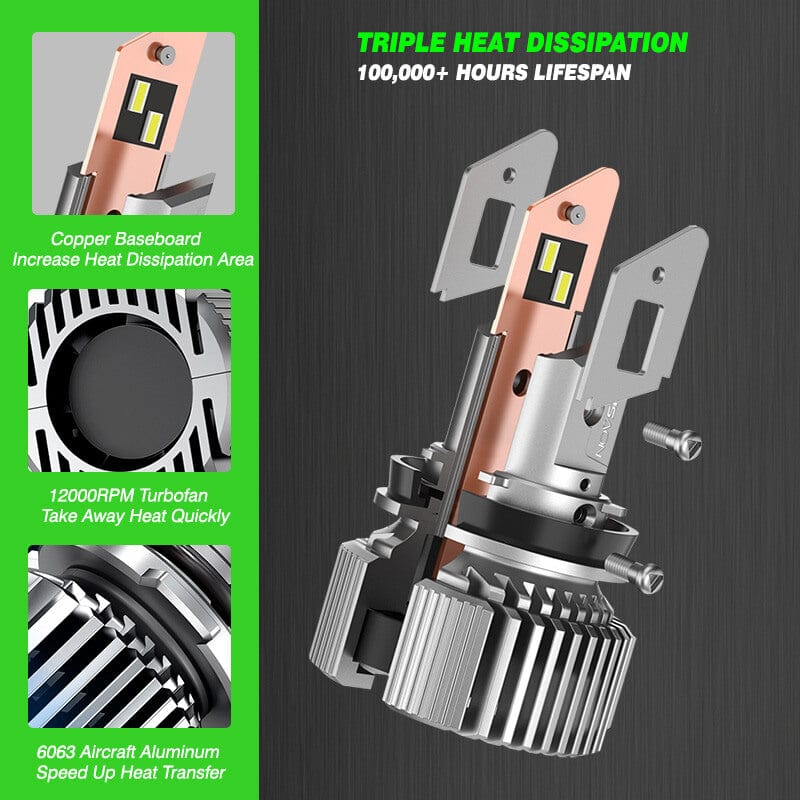

Excellent Cooling System with 12,000RPM Turbo Fan
Built-in 12,000RPM turbo fan take away the heat generated by the headlamp in time. The 6063 aircraft aluminum head lamp body, greatly improves the heat dissipation rate of the lamp beads. With IP68 waterproof, the led bulb life can reach 100,000 hours.

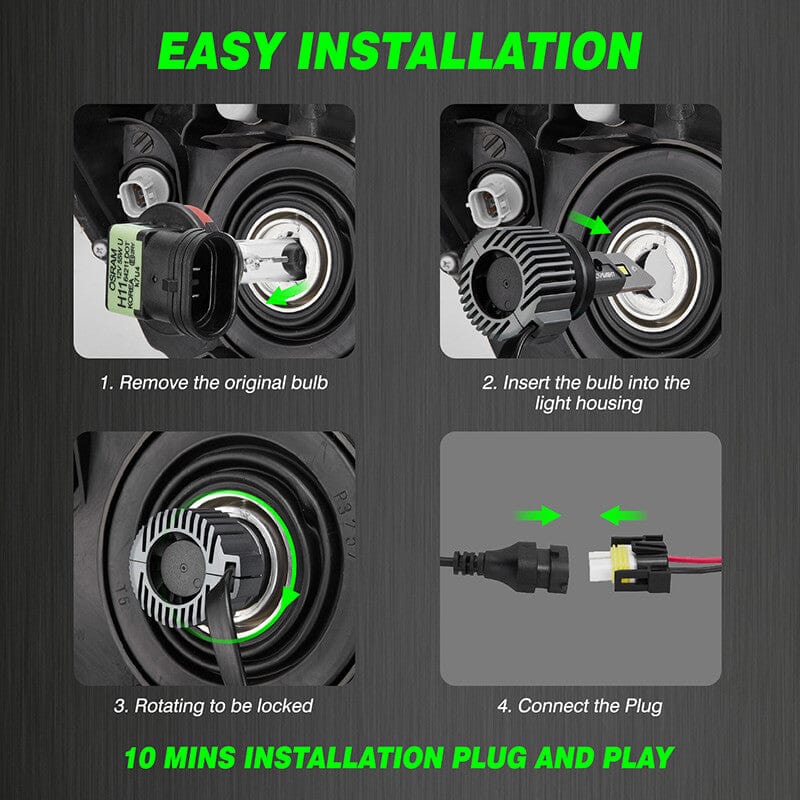

Installation Tips
- Remove the screws and clips holding the front grill in place.
- Remove the front grill so you can access the headlights.
- Remove the four (4) screws securing the metal bracket ring around the headlight.
- Remove the metal bracket ring in front of the headlight.
- Unplug the adapter and remove the old headlight.
- Unscrew the dust cover and remove the clip inside.
- Remove the old bulb inside counterclockwise and replace with the new LED light. Plug the excess wiring harness into the housing and install the dust cover
- Replace the headlight in the same way that you removed and attached the adapter.
Frequent Questions & Answers
-Do I need to buy a anti flicker / decoder kit at the same time to solve the possible flicker problem?
-Novsight led bulbs fit with 95% vehicle, but for vehicle like Dodge, Jeep, BMW, Volvo etc, extra canbus are needed to avoid flickering or dashboard error, If you encounter such a problem, you can contact us to get a decoder. Our customer service service@novsights.com.
Still have installation problems about jeep?
Firstly, make sure your led bulbs correctly installed. For dual headlight setups that provide low and high beams from one bulb we will use the same side to side orientation. There are two sets of LED chips on both sides of the bulb for dual beam bulbs and the two chip sets need to be aligned according to the illustration as mentioned in the manual book.
H13 LED Headlight Conversion Kit Specification
Light Source Type |
LED |
Color Temperature |
6500 Kelvin |
Lumen |
20000/set |
Wattage |
100w/set |
Lifespan |
100,000 hours. |
Installation |
Plug & Play |
Warranty |
2 Year Warranty |
Item Weight |
14.4 ounces |
Package Dimensions |
5.35 x 4.13 x 3.03 inches |
Notice:
- This H13 led headlight bulb set includes 2pcs H13 led headlight bulbs
- Our LED replaces halogen bulbs only. It does not replace HID or LED from factory.
- Due to different production years or improper installation, some jeeps have problems that our LED lights cannot be installed. If the above problem occurs, please contact us and we will solve it for you as soon as possible.
Shipping Policy:
1、FREE SHIPPING ZONEWe currently support free shipping to the US and UK except United States Minor Outlying Islands .Other areas are temporarily not free shipping . Shipping charges are calculated at checkout based on the weight, dimensions and destination of the items in the order.
Please check the form below for your destination shipping details
US & UK
Fedex Express(5-6 Businese Days) |
0kg–0.49kg |
$7.99 USD |
Fedex Express(5-6 Businese Days) |
0.5kg–0.99kg |
$11.99 USD |
Fedex Express(5-6 Businese Days) |
1kg–1.49kg |
$14.99 USD |
Fedex Express(5-6 Businese Days) |
1.5kg–1.99kg |
$17.99 USD |
Fedex Express(5-6 Businese Days) |
2kg and up |
$19.99 USD |
Standard Shipping Free(7-8 business days) |
— |
Free |
Australia, New Zealand
EMS (10-20 Business Days) |
0kg–0.49kg |
$9.99 USD |
EMS (10-20 Business Days) |
0.5kg–0.99kg |
$12.99 USD |
EMS (10-20 Business Days) |
1kg–1.49kg |
$15.99 USD |
EMS (10-20 Business Days) |
1.5kg–1.99kg |
$18.99 USD |
EMS (10-20 Business Days) |
2kg and up |
$21.99 USD |
Fedex Express( 6-10 Business Days) |
0kg–0.49kg |
$13.99 USD |
Fedex Express( 6-10 Business Days) |
0.5kg–0.99kg |
$16.99 USD |
Fedex Express( 6-10 Business Days) |
1kg–1.49kg |
$19.99 USD |
Fedex Express( 6-10 Business Days) |
1.5kg–1.99kg |
$22.99 USD |
Fedex Express( 6-10 Business Days) |
2kg and up |
$25.99 USD |
Canada
Fedex Express(5-6 Businese Days) |
0kg–0.49kg |
$9.99 USD |
Fedex Express(5-6 Businese Days) |
0.5kg–0.99kg |
$13.99 USD |
Fedex Express(5-6 Businese Days) |
1kg–1.49kg |
$17.99 USD |
Fedex Express(5-6 Businese Days) |
1.5kg–1.99kg |
$21.99 USD |
Fedex Express(5-6 Businese Days) |
2kg and up |
$26.99 USD |
Standard Shipping(7-8 business days) |
0kg–0.49kg |
$4.99 USD |
Standard Shipping(7-8 business days) |
0.5kg–0.99kg |
$8.99 USD |
Standard Shipping(7-8 business days) |
1kg–1.49kg |
$12.99 USD |
Standard Shipping(7-8 business days) |
1.5kg–1.99kg |
$16.99 USD |
Standard Shipping(7-8 business days) |
2kg and up |
$19.99 USD |
Central Asia and South America
EMS (15-20 Business Days) |
0kg–0.49kg |
$12.99 USD |
EMS (15-20 Business Days) |
0.5kg–0.99kg |
$15.99 USD |
EMS (15-20 Business Days) |
1kg–1.49kg |
$18.99 USD |
EMS (15-20 Business Days) |
1.5kg–1.99kg |
$21.99 USD |
EMS (15-20 Business Days) |
2kg and up |
$24.99 USD |
Fedex Express( 6-10 Business Days) |
0kg–0.49kg |
$16.99 USD |
Fedex Express( 6-10 Business Days) |
0.5kg–0.99kg |
$19.99 USD |
Fedex Express( 6-10 Business Days) |
1kg–1.49kg |
$23.99 USD |
Fedex Express( 6-10 Business Days) |
1.5kg–1.99kg |
$27.99 USD |
Fedex Express( 6-10 Business Days) |
2kg and up |
$31.99 USD |
East Asia
EMS (10-20 Business Days) |
0kg–0.49kg |
$4.99 USD |
EMS (10-20 Business Days) |
0.5kg–0.99kg |
$6.99 USD |
EMS (10-20 Business Days) |
1kg–1.49kg |
$8.99 USD |
EMS (10-20 Business Days) |
1.5kg–1.99kg |
$10.99 USD |
EMS (10-20 Business Days) |
2kg and up |
$12.99 USD |
Fedex Express(5-6 Businese Days) |
0kg–0.49kg |
$7.99 USD |
Fedex Express(5-6 Businese Days) |
0.5kg–0.99kg |
$9.99 USD |
Fedex Express(5-6 Businese Days) |
1kg–1.49kg |
$11.99 USD |
Fedex Express(5-6 Businese Days) |
1.5kg–1.99kg |
$13.99 USD |
Fedex Express(5-6 Businese Days) |
2kg and up |
$15.99 USD |
European
EMS (10-20 Business Days) |
0kg–0.49kg |
$8.99 USD |
EMS (10-20 Business Days) |
0.5kg–0.99kg |
$11.99 USD |
EMS (10-20 Business Days) |
1kg–1.49kg |
$14.99 USD |
EMS (10-20 Business Days) |
1.5kg–1.99kg |
$17.99 USD |
EMS (10-20 Business Days) |
2kg and up |
$19.99 USD |
Fedex Express( 6-10 Business Days) |
0kg–0.49kg |
$12.99 USD |
Fedex Express( 6-10 Business Days) |
0.5kg–0.99kg |
$16.99 USD |
Fedex Express( 6-10 Business Days) |
1kg–1.49kg |
$19.99 USD |
Fedex Express( 6-10 Business Days) |
1.5kg–1.99kg |
$22.99 USD |
Fedex Express( 6-10 Business Days) |
2kg and up |
$25.99 USD |
INDIA
Aramex Express(10-15 Business Days) |
0kg–0.49kg |
$9.99 USD |
Aramex Express(10-15 Business Days) |
0.5kg–0.99kg |
$15.99 USD |
Aramex Express(10-15 Business Days) |
1kg–1.49kg |
$21.99 USD |
Aramex Express(10-15 Business Days) |
1.5kg–1.99kg |
$26.99 USD |
Aramex Express(10-15 Business Days) |
2kg and up |
$31.99 USD |
Others(Bahrain, Botswana, Bulgaria, Croatia, Egypt, Estonia, Ethiopia, Ghana, Kazakhstan, Kenya, Latvia, Morocco, Mozambique, Nigeria, Qatar, Romania, Saudi Arabia, Tunisia, Burkina Faso, Congo - Brazzaville, Congo - Kinshasa, Djibouti, Guinea, Madagascar, Mali, Niger, Rwanda, Albania, Bolivia, Bosnia & Herzegovina, Chile, Costa Rica, Cyprus, Iceland, Mexico, North Macedonia, Serbia, Slovakia, Slovenia, South Africa, Uruguay, Senegal, Cayman Islands, U.S. Outlying Islands, Mauritius )
EMS (10-20 Business Days) |
0kg–0.49kg |
$14.99 USD |
EMS (10-20 Business Days) |
0.5kg–0.99kg |
$18.99 USD |
EMS (10-20 Business Days) |
1kg–1.49kg |
$22.99 USD |
EMS (10-20 Business Days) |
1.5kg–1.99kg |
$26.99 USD |
EMS (10-20 Business Days) |
2kg and up |
$30.99 USD |
Fedex Express( 6-10 Business Days) |
0kg–0.49kg |
$16.99 USD |
Fedex Express( 6-10 Business Days) |
0.5kg–0.99kg |
$19.99 USD |
Fedex Express( 6-10 Business Days) |
1kg–1.49kg |
$22.99 USD |
Fedex Express( 6-10 Business Days) |
1.5kg–1.99kg |
$25.99 USD |
Fedex Express( 6-10 Business Days) |
2kg and up |
$28.99 USD |
Southeast Asia(Cambodia, Indonesia, Malaysia, Philippines, Singapore, Thailand, Vietnam, Brunei Show less)
EMS (15-20 Business Days) |
0kg–0.49kg |
$12.99 USD |
EMS (15-20 Business Days) |
0.5kg–0.99kg |
$15.99 USD |
EMS (15-20 Business Days) |
1kg–1.49kg |
$18.99 USD |
EMS (15-20 Business Days) |
1.5kg–1.99kg |
$21.99 USD |
EMS (15-20 Business Days) |
2kg and up |
$24.99 USD |
Fedex Express( 6-10 Business Days) |
0kg–0.49kg |
$15.99 USD |
Fedex Express( 6-10 Business Days) |
0.5kg–0.99kg |
$18.99 USD |
Fedex Express( 6-10 Business Days) |
1kg–1.49kg |
$21.99 USD |
Fedex Express( 6-10 Business Days) |
1.5kg–1.99kg |
$24.99 USD |
Fedex Express( 6-10 Business Days) |
2kg and up |
$27.99 USD |
2、EXPEDITED EXPRESS
We support expedited express service (FedEx) ,but you need to charge the additional freight, the specific cost is calculated based on the weight, dimensions and destination of the items in the order.
3、SHIPPING ADDRESS
Shipping address should be a physical and specific address. We DO NOT ship to P.O. box address.
4、DELIVERY ADDRESS
Our delivery warehouses are mainly in China, the United States and the United Kingdom. We will select the best way according to the inventory of the products and destination of the order.
5、SHIPPING TIME
Orders Handling Time within 48 hours (excluding weekends).
6、INTERNATIONAL SHIPPING
DUE TO COVID19: International shipping options, tracking & delivery may be impacted thanks for your understanding and support.
7、DUTIES & TAXES
It is rare, but occasionally some customers may receive an invoice for duties or tariffs from their home country's customs agency.
8、SHIPPING SERVICE
If you have any questions about the shipping policy, please consult our official customer service Email: service@novsights.com , we will help you solve your problems.
TROUBLE
|
SOLUTION
|
The lights do not work properly
|
1.Check if the power connectors are properly
connected, and make sure that the vehicle headlight
switch is on the "ON" position.
2.Make sure that the vehicle's battery is fully
charged to supply power to the LED bulb.
3.Install the LED bulbs with the resistors (CANbus).
4.The resistor (CANbus) is polarity sensitive. If the
LED bulbs do not function properly after installation,
please reverse the resistor (CANbus) male
connector 180 degrees and try again.
|
One of the bulbs is not working
|
1.Make sure the connection is good. If one of the
bulbs still doesn't work, swap the left and right side
bulbs and test again.
2.Some series of car lights are polarity sensitive.If
the LED bulbs do not work properly after installation,
please reverse the connector 180 degrees and try
again.
|
The lights flicker or flash
|
Install the LED bulb with the resistors (CANbus) to
resolve the issue.. |
A warning lamp appears on the vehicle's system dashboard.
|
This is a harmless side-effect of the low-wattage
LED bulbs not being recognized by the vehicle's
system and can be resolved with the installation of
an additional set of resistors (CANbus).
|
The light pattern is wrong after the car lights are installed
|
1. Check whether the lamp body is installed and
turned up and down. As H4, H13 and 9004/9007
models are installed separately from the top and the
bottom.
2. Check whether the lamp body is rotated in the
correct direction and locked in place after inserting
the locking ring.
|
There is not enough space for installation on the passenger side
|
For some vehicles, such as Honda CRV 2007-2014,
the headlight assembly on the passenger side is
very close to the fuse box, so there is not enough
space to operate the bulb installation. So we need
unclip and adjust fuse box for easier access during
the installation process.. |
Dust cover can not be installed back
|
For some vehicles, the light housing dust cover can
not be installed back after installing the LED lights.
In this case, you can consult our brand customer
service to request a modified dust cover for free.
|
The light bulbs is
difficult to rotate in place. |
For some vehicles, the light housing dust cover is
thick, which makes it difficult for LED bulbs to rotate
in place in the light housing. To solve this problem,
you need to forcefully push the LED bulbs into the
light housing and then rotate it clockwise.
|
