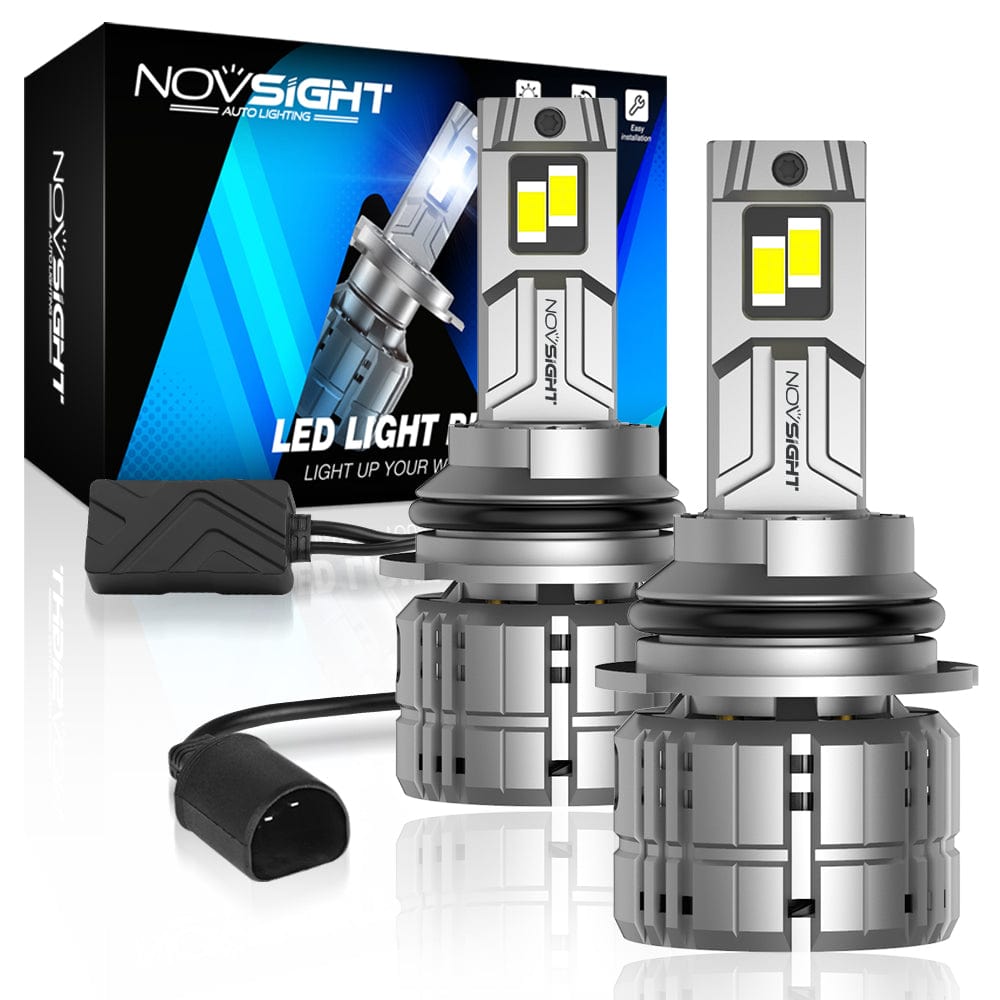

9004 HB1 LED Bulb High Power LED High Low Dual Beam Super Brighter Halogen Headlight Replacement Kits,2 Bulbs

Regular price
$119.59 USD
Regular price
Sale price
$119.59 USD
★Fall Sales 10% OFF CODE★:  NOV10 Copy
Tax included.

Sku : A500-N60US-9004

Trusted Image

Novsight brings you the new Super Bright series of LED bulbs. This LED headlight bulb will bring you 9 times the brightness, and it is equipped with double thermal conductive copper tubes, which greatly improves the heat dissipation efficiency of the bulb. The plug-and-play design will perfectly match your car.

New Hot Sale Promotional Packs, Buy now Get 20% with code: N60PRO !!!

LED headlights bulb provide maximum lumenn output

Key Features of High Power 9004 HB1 LED Bulbs

900% Brighter Than Factory Halogen Headlight

Using advanced automotive CSP chip, each pair of 200W 40000 lumens, 900% brighter than ordinary halogen bulbs. 6500K cool white 9004 LED bulbs allow you to see farther and clearer without fear of the dark night.

More Focused Beam on this N60 Pro series Headlight Replacement

9004 LED car light bulb features 3 rows of ultra-thin chips that mimic the light pattern of a halogen bulb while reducing floodlight to produce a more focused beam type. The perfect beam cut line won't dazzle the opposite driver.

Super-longer Service Lifespan Extand Your Forward Lighting

Be made of one-piece 6063 aviation aluminum material, built-in red copper substrate, and double heat-conducting copper tubes to accelerate heat conduction. The high-speed rotating fan cools 9004 LED bulbs quickly and lasts up to 100,000 hours.

Fit for 99% Vehicles, Plug N Play for your Best Installation solution

9004 LED bulb conversion kit with external drive design, high power and higher vehicle applicability, suitable for 99% of the market cars, no light flickering and code errors. One-piece bulb design, plug and play, quick installation in 5 minutes

LED bulb key features

9004 HB1 LED Bulb Installation Guide:

Step 1: Removing the vehicle's original bulb.

Step 2: Holding the bulb by the heat sink, twist the locking ring counterclockwise until it unlocks, and then remove it.

Step 3: Install the locking ring to the vehicle's light housing and lock it in place.Insert the vehicle’s original light holder into the vehicle's housing, rotate clockwise and lock it in the place.

Step 4: Insert the LED bulb through the secure locking ring. Line up the tab parts of the led bulb with the groove sections of the locking ring.

Step 5: While pressing down the LED bulb, tum it clockwise until it does not turn anymore and then lock the LED bulb in place.Make sure LED chips are facing 3 & 9 o'clock position.

Step 6: Connect the LED bulb's connector with the original vehicle connector.

9004 HB1 LED Bulb Specifications

  • Model: 9004 (HB1)
  • Power: 200W/Set(100W/Bulb)
  • Voltage: DC9-32V
  • Color Temperature: 6500K Cool White
  • Lumen: Up to 40,000 lms/Set
  • Waterproof Rate: IP68
  • Connect Type: Plug and Play


For higher power, high lumen 9004 HB1 LED bulbs, click here

Can't find your headlight bulb model? To click this car bulb size finder.

Want to pick out high-quality LED bulbs? You can refer to here: How to judge the quality of LED headlight bulbs?

Warm Tips

  1. Our LED replaces halogen bulbs only. It does not replace HID or LED from factory.
  2. If the LED bulb and fan do not work after installation, please try 180°reverse the plug and reconnect.
  3. The filter system may not be 100% accurate,the bulb size may vary between trim of your vehicle and other conditions like manufacturer and aftermarket modifications.Please double check owners manual or original bulb size to confirm before placing an order.

Shipping Policy

  • Orders Handling Time within 48 hours (excluding weekends).
US/CA/UK Area Shipping Method Conditions Shipping Time Costs
USA USPS-Standard Shipping <2.0 KG 7-8 Business Day Free
USA USPS-Standard Shipping 2.1-2.6 KG 7-8 Business Day $5.00
USA USPS-Standard Shipping 2.61-2.9 KG 7-8 Business Day $8.00
USA USPS-Standard Shipping 2.9-6 KG 7-8 Business Day $9.99
UK Royal Mail Tracked 48 <2 KG 7-8 Business Day Free
UK Royal Mail Tracked 48 2.1-2.6 KG 7-8 Business Day $5.00
UK Royal Mail Tracked 48 2.61-2.9 KG 7-8 Business Day $8.00
UK Royal Mail Tracked 48 2.91-6 KG 7-8 Business Day $9.99
CA Standard Shipping <2 KG 7-8 Business Day Free
CA Standard Shipping 2.1-2.6 7-8 Business Day $6.00
CA Standard Shipping 2.61-2.9 KG 7-8 Business Day $8.00
CA Standard Shipping >2.91-6 KG 7-8 Business Day $9.99



DUE TO COVID19: International shipping options, tracking & delivery may be impacted

We’ve improved our international shipping methods to get you faster delivery and better tracking. If you have any questions,you can send mails to us.



It is rare, but occasionally some customers may receive an invoice for duties or tariffs from their home country's customs agency.

The lights do not work properly
1.Check if the power connectors are properly
connected, and make sure that the vehicle headlight
switch is on the "ON" position.
2.Make sure that the vehicle's battery is fully
charged to supply power to the LED bulb.
3.Install the LED bulbs with the resistors (CANbus).
4.The resistor (CANbus) is polarity sensitive. If the
LED bulbs do not function properly after installation,
please reverse the resistor (CANbus) male
connector 180 degrees and try again.
One of the bulbs is not working
1.Make sure the connection is good. If one of the
bulbs still doesn't work, swap the left and right side
bulbs and test again.
2.Some series of car lights are polarity sensitive.If
the LED bulbs do not work properly after installation,
please reverse the connector 180 degrees and try
The lights flicker or flash
Install the LED bulb with the resistors (CANbus) to
resolve the issue..
A warning lamp appears on the vehicle's system dashboard.
This is a harmless side-effect of the low-wattage
LED bulbs not being recognized by the vehicle's
system and can be resolved with the installation of
an additional set of resistors (CANbus).
The light pattern is wrong after the car lights are installed
1. Check whether the lamp body is installed and
turned up and down. As H4, H13 and 9004/9007
models are installed separately from the top and the
2. Check whether the lamp body is rotated in the
correct direction and locked in place after inserting
the locking ring.
There is not enough space for installation on the passenger side
For some vehicles, such as Honda CRV 2007-2014,
the headlight assembly on the passenger side is
very close to the fuse box, so there is not enough
space to operate the bulb installation. So we need
unclip and adjust fuse box for easier access during
the installation process..
Dust cover can not be installed back
For some vehicles, the light housing dust cover can
not be installed back after installing the LED lights.
In this case, you can consult our brand customer
service to request a modified dust cover for free.
The light bulbs is
difficult to rotate in place.
For some vehicles, the light housing dust cover is
thick, which makes it difficult for LED bulbs to rotate
in place in the light housing. To solve this problem,
you need to forcefully push the LED bulbs into the
light housing and then rotate it clockwise.
